32 CH TVI / AHD/CVI 5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
32 CH DVRs support 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-type recording: manual / schedule / sensor / motion /analytics recording
Playback : 16 CH simultaneously playback
Search: time slice, time, event, tag and smart search
Express and flexible backup via USB, network and so on
Pentaplex: preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Multi-user online simultaneously
Authorization management, log review and device status review
1080P output, true high resolution display
Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.

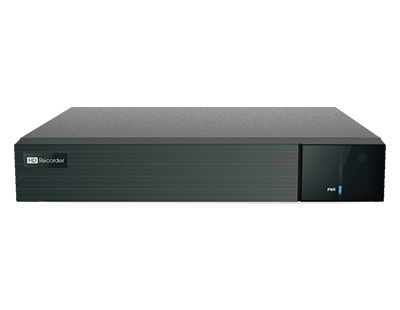

Model | TD-2732BC-HC | |
System | OS | Embedded Linux |
Video | Analog Video Input | BNC × 32 |
BNC interface (1.0Vp-p; 75Ω) | ||
TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P/WD1@25fps/30fps (live) | ||
IP Video Input | 8CH (up to 24CH) | |
Up to 5MP@30fps | ||
Total Input | 40CH | |
Output | HDMITM × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | |
VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 | ||
BNC × 1 : CVBS ( used as the main or spot output ) | ||
Compression | H.264/H.265 | |
Multi-screen Display | 1/4/6/8/9/13/16/25/32/36 | |
Audio | Input | RCA × 16 |
Output | RCA × 1 (linear, 600Ω) | |
Two-way audio | Take up channel one audio input | |
Compression | G.711(U/A) | |
Record | Resolution | 5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1 |
Frame Rate | Analog Channel: | |
5MP Lite@10fps (PAL / NTSC) | ||
4MP Lite/1080P@12fps(PAL) / 15fps (NTSC) | ||
1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps (NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC) | ||
Bit Rate | 32Kbps ~ 8Mbps | |
Playback | Playback | 16CH |
Search | Time slice / time / event / tag /smart search | |
Smart Search | Highlight colors to display the camera record in a certain period of time, | |
different colors refer to different record events | ||
Function | Play, pause, FF, FB, digital zoom, etc. | |
Alarm | Mode | Manual, motion, exception, smart event |
Input | 16CH | |
Output | 4CH | |
Network | Interface | RJ 45 1000Mbps × 1 |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP | |
Incoming Bandwidth | 40Mbps | |
Outgoing Bandwidth | 160Mbps | |
Client Connection | Max. 10 users access | |
MobileDevice | OS | iOS, Andriod |
Storage | HDD | SATA×4, up to 10TB per HDD; E-SATA×1 |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
USB | USB 2.0 × 1; USB 3.0 × 1 | |
Remote Controller | Optional | |
Others | Power Supply | ATX-250W |
Consumption | ≤ 30W ( without HDD ) | |
Dimensions(mm) | 440 × 390 × 70 ( W × D × H ) | |
Working Environment | -10~50°C, 10%~90% (humidity) | |
Certificate | CE, FCC | |
Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |
