32 CH TVI / AHD/CVI 8MP/5MP/ 4MP/ 3MP / 1080P / 720P / WD1 video input
32 CH DVRs support 8 CH 8MP/5MP / 4MP / 3MP / 1080P / 960P /720P IP video input
8CH analog video input can be switched to 8CH IP video input
Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
Multi-type recording: manual / timed / sensor / motion /AI recording
Playback : 16 CH simultaneously playback
Search: time slice, time, event, tag and smart search
Express and flexible backup via USB, network and so on
Supports local preview, record, playback and backup
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Multi-user online simultaneously
Authorization management, log review and device status review
4K output, true high resolution display
Supports PTZ preset and auto cruise, up to 255 presets and 8 cruises
Supports RAID 0, 1, 5, 6, 10
Supports NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Andriod OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.

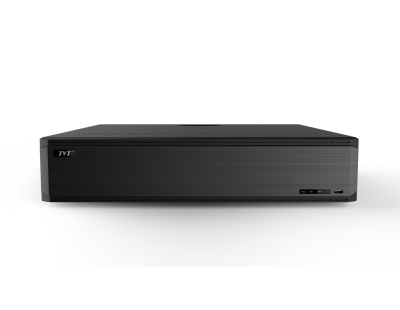

Model | TD-2732ND-HP | |
System | OS | Embedded Linux |
Video | Analog Video Input | BNC × 32 |
BNC interface (1.0Vp-p; 75Ω) | ||
TVI/AHD/CVI : 4K@15fps; 5MP@20fps; 4MP/3MP/1080P/720P/WD1@25fps/30fps (live) | ||
IP Video Input | 8CH (up to 16CH) | |
Up to 8MP@30fps | ||
Total Input | 40CH | |
Output | HDMITM 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 | |
Compression | H.264/H.265 | |
Multi-screen Display | Main output: 1/4/6/8/9/13/16/25/32/36 | |
Audio | Input | RCA × 16 |
Output | RCA × 1 (linear, 600Ω) | |
Two-way audio | Take up channel one audio input | |
Compression | G.711(U/A) | |
Record | Resolution | 4K/4K Lite / 5MP/5MP Lite/4MP/4MP Lite/3MP/1080P/1080P Lite/720P/WD1/D1 |
Frame Rate | Analog Channel: 4K@8fps(PAL / NTSC); 4K Lite@12/15fps(PAL / NTSC); 5MP @12fps (PAL / NTSC); | |
IP Channel: 25fps (PAL) / 30fps (NTSC) | ||
Bit Rate | 32Kbps ~ 5Mbps | |
Playback | Playback | 16CH |
Search | Time slice / time / event / tag /smart search | |
Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
Alarm | Input | 16CH |
Output | 8CH | |
AI Function | Smart Motion Detection Performance | No |
Perimeter Protection Performance | No | |
Network | Interface | RJ 45 1000Mbps × 2 |
Protocol | TCP / IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, UDP, | |
Incoming Bandwidth | 48Mbps (max. 96Mbps) | |
Outgoing Bandwidth | 192Mbps | |
Client Connection | Max. 20 users access | |
MobileDevice | OS | iOS, Andriod |
Storage | HDD | SATA×8, up to 10TB per HDD |
RAID | RAID 0, 1, 5, 6, 10 | |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | RS 485 | Yes (full-duplex), connect to PTZ or keyboard |
USB | USB 2.0 × 2; USB 3.0 × 1 | |
Remote Controller | Optional | |
Others | Power Supply | ATX-200W |
Consumption | ≤ 50W ( without HDD ) | |
Dimensions(mm) | 445 × 436 × 90( W × D × H ) | |
Working Environment | -10~50°C, 10%~90% (humidity) | |
Certificate | CE, FCC | |
Environmental Protection | Comply with Directive EU RoHS, WEEE, REACH | |
