Support 16 CH 6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/DI/CIF IP video input
H.265S/H.265+/H.265/H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-type recording: manual / timed / motion / sensor / POS / AI recording
Playback : 9CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, crowd density, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log view and device status view 1080P HD output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.

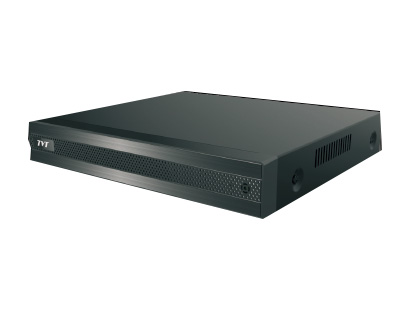

Model | TD-3016H1-B1 | |
System | OS | Embedded Linux |
Video | Network Input | 16 CH IPC input |
Network Input Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF | |
Output | HDMITM × 1 : 1920 × 1080 / 1280 × 1024/ 1024 × 768 | |
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 | ||
HDMITM and VGA output the same video source | ||
Compression | H.265S / H.265+ /H.265 /H.264 | |
Multi-screen Display | 1 / 4 / 6 / 8 / 9 / 13/ 16 | |
Audio | Network Input | 16 CH IPC audio input |
2-way Audio | No | |
Local Output | No (HDMITM supports the audio output) | |
Compression | G.711(U/A) | |
Record | Resolution | 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF |
Frame Rate | 30fps/25fps(NTSC/PAL) | |
Playback | Simultaneous Playback | Max. 9 CH |
Search | Time slice / time / event / tag /smart search | |
Smart Search | Highlighted color to display the camera record in a certain period of time, | |
different colors refers to different record events | ||
Function | Play, pause, FF, FB, digital zoom, etc. | |
Decoding Capability | Live View/ Playback | 1CH 6MP; |
4CH 720P | ||
Alarm | Type | Manual, sensor, motion, exception, smart events, etc. |
Input | Support IPC alarm input | |
Output | Support IPC alarm output | |
Triggering | Record, snapshot, buzzer, preset, e-mail, etc. | |
Network | Interface | RJ 45 100Mbps × 1 |
Protocol | TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, RTSP, ONVIF, etc. | |
Incoming Bandwidth | 64 Mbps | |
Outgoing Bandwidth | 64 Mbps | |
Client Connection | Max. 10 users access | |
LPR | Plate Recognition | Yes |
Mobile Device | OS | iOS, Andriod |
Storage | HDD Interface | SATA3.0 × 1, max 10T |
Backup | Local Backup | U disk, USB mobile HDD |
Network Backup | Yes | |
Port | USB | USB 2.0 × 2 |
Remote Controller | No | |
Others | Power Supply | DC 12V/1.5A |
Consumption | ≤ 5W ( without HDD ) | |
Dimensions (mm) | 255 × 222 × 42 ( W × D × H ) | |
Working Environment | -10 ～ 50 ℃，10% ～ 90% humidity | |
Certificate | CE, FCC | |
Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |
