Support 4/8/16 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 1280×1024/960P/720P/960H/DI/CIF IP input
H.265S/ H.265+/ H.265/ H.264 coding
Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
Multi-mode recording: manual / timed / motion / sensor/ POS/ AI recording
Playback : 4 /8/16CH simultaneous playback
Search : time slice, time, event, tag, smart search
Support multiple VCA (Video Content Analytics) events, such as object abandoned/missing, region intrusion, tripwire, video exception, etc.
Support POS information overlay on live view and playback
Express and flexible backup via USB, network and so on
Pentaplex : preview, record, playback, backup and remote access
DHCP, DDNS, PPPoE network protocol
Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
Authorization management, log view and device status view
4K output, true high resolution display
Support NAT function and QRCode scanning by mobile phones
Powerful mobile surveillance by smart phones with iOS and Android OS
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Model | TD-3104H1-B1 | TD-3108H1-B1 | TD-3116H1-B1 | |
System | OS | Embedded Linux | ||
Video | Network Input | 4 CH IPC input | 8CH IPC input | 16CH IPC input |
Network Input Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | |||
Output | HDMITM × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 | |||
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768 | ||||
Compression | H.265S / H.265+ / H.265 / H.264 | |||
Audio | Network Input | 4 CH IPC audio input | 8 CH IPC audio input | 16 CH IPC audio input |
2-way Audio | RCA × 1 | |||
Local Output | RCA × 1 | |||
Compression | G.711(U/A) | |||
Record | Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF | ||
Frame Rate | NTSC:30fps; PAL:25fps | |||
Playback | Simultaneous Playback | Max. 4 CH | Max. 8 CH | Max. 16 CH |
Search | Time slice / time / event / tag search | |||
Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |||
Function | Play, pause, FF, FB, digital zoom, etc. | |||
Decoding Capability | Live View/ Playback | 1CH 8MP; | ||
4CH 1080P | ||||
Alarm | Mode | Manual, sensor, motion, exception, smart events | ||
Input | Support IPC alarm input | |||
Output | Support IPC alarm output | |||
Triggering | Record, snap, preset, e-mail, etc. | |||
Network | Interface | RJ 45 1000Mbps × 1 | ||
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, SNMP, RTSP, ONVIF, etc. | |||
Incoming/ Outgoing Bandwidth | 40/40 (Mbps) | 80/80 (Mbps) | 96/96 (Mbps) | |
Client Connection | Max. 10 users access | |||
Other Functions | Plate Recognition | Yes | ||
Fisheye | No | |||
Human/Vehicle Classification | Yes | |||
Mobile Device | OS | iOS, Andriod | ||
Storage | HDD Interface | SATA3.0 × 1, max 10T | ||
Backup | Local Backup | U disk, USB mobile HDD | ||
Network Backup | Yes | |||
Port | USB | USB 2.0 × 2 | ||
Remote Controller | Optional | |||
Others | Power Supply | DC 12V/1.5A | ||
Consumption | ≤ 10W ( without HDD ) | |||
Dimensions (mm) | 300 × 249 × 45 ( W × D × H ) | |||
Working Environment | -10 ～ 50°C, 10% ～ 90% humidity | |||
Certificate | CE, FCC | |||
Environmental Protection | Complies with Directive EU RoHS, REACH and WEEE | |||
English
Azərbaycan

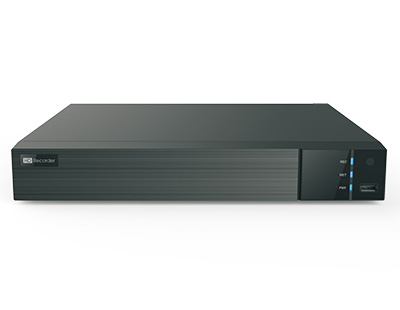

0 review(s) for "TD-3104H1-B1/TD-3108H1-B1/TD-3116H1-B1 4/8/16 CH NVR"
