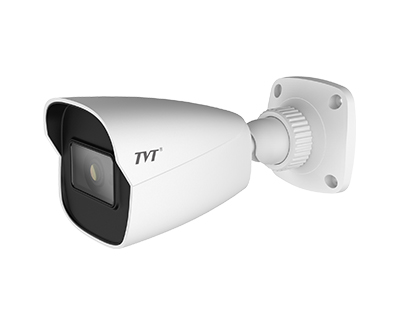

Camera

Image Sensor

1 / 2.8" CMOS

Image Size

1920 × 1080

Electronic Shutter

Auto/Manual mode; manual: 1 / 3 s ~ 1 / 100000 s

Iris Type

Fixed Iris

Min. Illumination

0.005 lux@F1.6,AGC ON; 0 lux with IR

Lens

2.8 mm@F1.6, horizontal FoV: 101.5°; vertical FoV: 54.6°; diagonal FoV:117°

3.6 mm@F1.6, horizontal FoV: 78.9°; vertical FoV: 45.5°; diagonal FoV:101°

Focus

Fixed

Lens Mount

M12

Day& Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

EIS

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression

Main stream: H.265+ / H.265  /  H.264+  /  H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

1080P(1920×1080 ), 720P(1280×720 ), D1, CIF, 480×240, VGA(640×480)

Main Stream

1080P/720P(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps )

Sub Stream

720P/D1/CIF/VGA(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps )

Third Stream

D1/CIF/480×240/VGA(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps )

Bit Rate

64 Kbps ~ 6 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, Image Flip, Image Mirror, etc.
adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Network

RJ 45 10M/100M self-adaptive Ethernet port

Video Output

No

Audio

1CH audio input

Storage

Built-in micro SD card slot; up to 256GB

Reset

Yes

Alarm

No

Intelligent Analytics

Smart Event

Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection

Statistics

Target counting by line/area, heat map

Exception Detection

Scene change, video blur and abnormal color detection, audio exception

Face Detection

Face detection and face capture

Video Metadata

Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

41.49m(136.12ft)

16.60m(54.46ft)

8.30m(27.23ft)

4.15m(13.61ft)

3.6mm

50.89m(166.96ft)

20.35m(66.76ft)

10.18m(33.39ft)

5.09m(16.69ft)

Functions

Remote Monitoring

Web Browser/TVT NVMS2.0/NVR/mobile APP

Web Browser

IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS,
SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, QoS

Interface Protocol

ONVIF(profile S, G, T, M)

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, SD card error, SD card full, IP address conflict, cable disconnection

General Function

Watermark, video mask, heartbeat, image distortion correction, corridor pattern

Security

Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP

PoE

Yes , IEEE802.3af

IR Distance

20~30 m

Ingress Protection

IP67

Others

Power Supply

DC12V/PoE

Power Consumption

< 6W

Storage Conditions

- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Operating Conditions

- 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

167.5 × 74. 5 × 74. 5

Weight ( net )

Approx. 0.42KG

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC

Environmental Protection

Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
