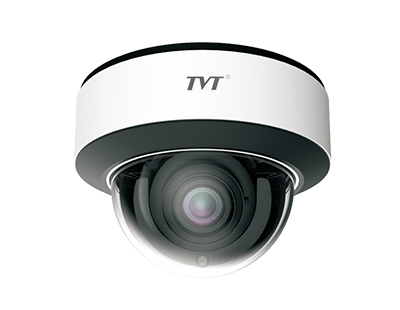

Camera

Image Sensor

1 / 2.7 "CMOS

Image Size

2880×1620

Electronic Shutter

1 / 2s ~ 1 / 100000s

Iris Type

Fixed Iris

Min. Illumination

0.005 lux @F1.4, AGC ON; 0 lux with IR

Lens

2.8~12mm@F1.4, motorized

Field of View

Horizontal: 100 °~36.5°; Vertical: 52°~20.5°; Diagonal: 116 °~ 41°

Lens Mount

Ø14

Day&Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Digital NR

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345°


Video Compression

Main stream: H.265+ /  H.265  /  H.264+  /  H.264
Sub/Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.265 Compression Standard

Main Profile@Leve4.1 High Tier

Resolution

5MP(2880×1620), 4MP(2560×1440), 3MP(2304×1296), 1080P(1920×1080),
720P(1280×720), D1, VGA(640× 480), 480× 240, CIF

Main Stream

5MP/4MP/3MP/1080P/720P(60Hz:1~30fps; 50Hz:1~25fps)

Sub Stream

720P/D1/VGA/CIF (60Hz:1~30fps; 50Hz:1~25fps)

Third Stream

D1/480× 240/CIF (1~30fps);50Hz: D1/480× 240/CIF(1~25fps)

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A/U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

ROI

Each ROI to be configured separately

Functions

Remote Monitoring

Web browser /TVT NVR/NVMS2.X/Mobile APP

Web Browser

IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, RTMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS

Interface Protocol

ONVIF

Security

Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, SD card error, SD card full, IP address conflict, cable disconnection, video exception

Smart Event

Line crossing/region intrusion (human/vehicle classification), abandoned/ missing object detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern

PoE

Yes

IR Distance

30 ~ 50 m

Ingress Protection

IP 67 & IK10

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8~12mm(W)

67m(222ft)

27m(89ft)

13m(44ft)

6m(22ft)

2.8~12mm(T)

183m(602ft)

73m(241ft)

36m(120ft)

18m(60ft)

Interfaces

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH built-in MIC

Storage

Built-in micro SD card slot, up to 256GB

Reset

Yes

Others

Power Supply

DC12V/PoE

Power Consumption

< 8.5W

Operating Environment

- 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing)

Storage Environment

- 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

Ø 141 × 100.2

Weight ( net )

Approx. 0.91KG

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
