High-performance hardware platform, stable and reliable
Embedded Linux operating system; All-in-One simple deployment
Supports 1 SATA interfaces
Supports the device access of TVT
Supports ONVIF protocol
Supports standard, widescreen and customized screen display modes
Supports 1CH instant playback and main output alarm preview
Supports device and storage server record search, playback and download
Supports record search and playback by time, channel, event and tag
Supports record clip and backup; Support backup by time and event
Supports human/vehicle monitoring deployment and visitor management
Supports corridor pattern
Supports 1CH fisheye camera access
Supports PTZ control, preset and cruise settings and calling
Supports voice monitoring, two-way talk and broadcast
Supports picture map
Supports various alarm types and linkages
Supports multi-level, multi-area and multi-user permission management
Supports SDK development package for customized integration application
Supports Android mobile APP management
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
System | Operation System | Linux |
Memory | LPDDR4 8G, 64GB EMMC | |
Video &Audio | Video Output | HDMITM1: 3840×2160@60, 3840×2160@30, 1920×1080 |
Video Compression | H.264/H.265/H.265+/H.265S | |
Audio Output | 1CH audio output | |
Support HDMITM1 audio output | ||
Audio Compression | G.711(U/A) | |
Live View | Max. number of preview | 72（36+36） |
Max. Resolution | 16MP | |
Decoding Capability | 1 ×16MP or 4 ×8MP or 9 ×4MP (only available for main output) | |
Playback | Simultaneous Playback | 16CH |
Max. Resolution | 16MP | |
Decoding Capability | 1 ×16MP or 4 × 8MP or 9 × 4MP (only available for main output) | |
Performance | Users | 6 online users and 64 total users |
Max. Number of Channel Access | 256CH | |
Max. Number of Device Access | 64 devices | |
Max. Number of Transfer Server Access | 1 | |
Max. Number of Storage Server Access | 1 | |
Max. Channel Number of Recording per Storage Server | 32 | |
Max. Number of Channel Access of Third-party protocol | 256 | |
Max. Number of Device Access of Third-party protocol | 64 | |
Max. Channel Number of Simultaneous Preview | 256 (for one client/user) | |
Max. Channel Number of Simultaneous Playback | 16 (for one client/user) | |
Max. Number of Views | Up to 64 view plans can be created | |
Max. Number of Channel Access of Single Transfer Service | 256 | |
Max. Number of Device Access of Single Transfer Service | 64 | |
Incoming Bandwidth | 512Mbps | |
Outgoing Bandwidth | 128Mbps | |
Storage Bandwidth | 256Mbps | |
Face Database | A maximum of 10,000 face pictures can be registered | |
Vehicle Database | A maximum of 10,000 license plates can be registered | |
Fisheye Camera Access | Support 1CH fisheye camera to set fisheye mode | |
External Interfaces | Ethernet Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet ports |
Storage | SATA3.0 x1，up to 10TB per HDD | |
Alarm | / | |
USB | USB3.0 ×1 ， USB 2.0 × 2 | |
USB Console Interface | 1 | |
Others | Power | DC12V3A |
Power Consumption | < 36W | |
Working Temperature | –10°C - +50°C | |
Relative Humidity | 10% ~ 90% | |

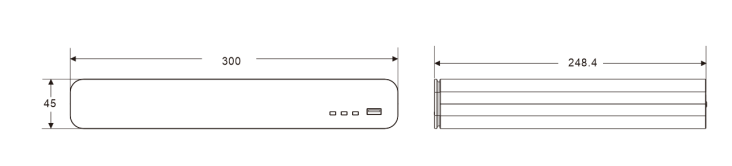

Dimensions | 300 × 248.4× 45mm | |
Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , Directive 94/62/EC and REACH(EC1907/2006) |
