High Performance
Integrated Intel Xeon E3-1220V5 high-performance 4 core processor, up to 8GT/s data transfer rate, 64 bit expansion, I/O acceleration, Turbo, Hyper-Threading Technology
4 memory card slots, up to 64GB DDR4-1866/2133MHz ECC
2 gigabit Ethernet ports; supports I/OA technology; supports link aggregation and binding redundancy; supports iKVM;IPMI×1
12Gbps SAS Expander, 12Gbps RAID card (RAID0,1,5,6 supported)
High Reliability

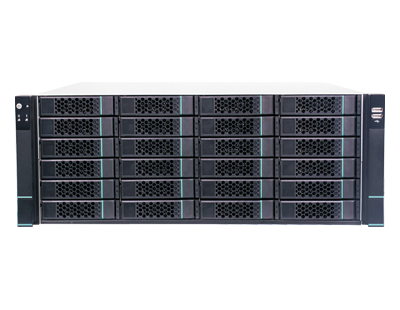

24 *3.5 inch hot-pluggable HDD slots and 2 built-in 2.5 inch HDD slots, up to 384TB
3 control expansion slot: 1*PCI-E3.0x16(x8);1*PCI-E3.0x8; 1*PCE-E3.0x8(x4)
800W 1+1 redundant power supply
Easy to Manage
Monitoring various status of the storage server, such as connection status, network status, hardware status and so on; judging the fault level according to the buzzer sound; timely recording event information and operation logs of the device; providing full solution of real-time monitor and alarm of the device
Independent IPMI interface; supports iKVM, remote startup and shutdown and software installation services
Provide TPM interface which supports TPM standard security chip, so that the device can be protected effectively in case of the illegal user access
Embedded device access and transfer modules without extra transfer server access
Its transfer server doesn’t rely on platform, so the recording will not be interrupted even if the network of the platform server is disconnected
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
Free Shipping apply to all orders over $100
Guaranteed 100% Organic from natural farms
1 Day Returns if you change your mind
Covid-19 Info: We keep delivering.
CPU | Intel Xeon Processor E3 |
OS | Ubuntu20.04 |
Memory | 8GB DDR4 ECC, |
up to 64GB DDR4 ECC memory | |
HDD | 3.5 inch SATA x 24 (hot-pluggable); built-in 2.5 inch SATA x 2 |
HDD Installation | Independent HDD bracket |
Capacity | Up to 384TB (max.16T per HDD) |
RAID | Hardware RAID; support RAID0,1,5,6 |
Expansion | 1*PCI-E3.0x16(x8);1*PCI-E3.0x8;1*PCE-E3.0x8(x4) |
Network Card | Integrated I210-AT dual gigabit network cards, load balancing and if one is offline, the other will replace |
IPMI | ASPEED AST2400 BMC, independent IPMI interface; support iKVM |
Monitor Control | Integrated display controller |
Protocol | Support TCP / UDP / RTSP protocol |
Search | Built-in index, accurate to second-level |
Performance | Up to 700Mbps incoming, 700Mbps recording and 96Mbps playback |
Up to 700Mbps incoming, 700Mbps recording and 96Mbps live view | |
Way of Management | WEB management, seamless access to NVMS |
Capability of Management | RAID management, record management, system log as well as alarm processing |
Security | Supply TPM interface; TPM module installation supported |
Interface | 1× VGA, 6× USB(4 in the real panel and 2 in the front panel), 2× RJ 45, 1× IPMI, 1× RS 232 |
Power Supply | 800W 1+1 redundant power supply, 100~240V-10~5A / 50~60Hz |
Temperature | Working: 10°C to 35°C; standby: –40°C~+55°C(ambient) |
Relative Humidity | Working: < 90% RH (35°C) |
Noise | Working: < 50Dba |
ESD | Each item conforms to Intel ambient temperature test standard 15KV |
