Video

Analog Video Input

BNC×1

BNC interface (1.0Vp-p; 75Ω)

TVI/AHD/CVI : 5MP@20fps; 4MP/1080P/720P @30fps
CVBS video signal input supported

Video Compression

H.265+/H.265/ H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Bit rate Type

VBR/CBR

Bit Rate

64Kbps ~ 8Mbps

Resolution

5MP (2592×1944), 4MP (2560×1440), 1080P (1920 ×1080), 720P ( 1280 × 720), D1, CIF, VGA(640 × 480), 640 × 360, 480 × 240

Main Stream

5MP(1~20fps)/4MP/1080P/720P/D1 (60Hz:1~30fps; 50Hz:1~25fps)

Sub Stream

720P/D1/VGA/640×360/CIF (60Hz:1~30fps; 50Hz:1~25fps)

Third Stream

D1/VGA/CIF/480×240 (60Hz:1~30fps; 50Hz:1~25fps)

Audio

Audio Input

1CH 3.5mm audio input

Two-way Audio

Take up the above audio input

Audio Output

1CH 3.5mm audio output

Audio Compression

G711A/U


Image Setting

Saturation, hue, brightness, contrast, wide dynamic range, sharpness, defog, NR, image mirror, image flip, etc.,
adjustable through client or web browser

ROI

8 ROI, each region can be set up separately

Interfaces

Network

100M RJ45

Audio

1CH 3.5mm audio input; 1CH 3.5mm audio output

Video

1CH BNC video input

Storage

1 micro SD card slot, up to 256G

Alarm

8CH alarm input; 4CH alarm output

Function

Remote Monitoring

Web browser/TVT NVMS2.0/NVR/mobile APP

Online Connection

Supports simultaneous monitoring for up to 8 users
Supports multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, Qos, P2P

Interface Protocol

ONVIF

Storage

Network remote storage; micro SD card storage

Smart Alarm

SD card full, SD card error, IP address conflict, cable disconnection, sensor alarm, motion alarm

Intelligent Analytics

Video exception detection: video blur detection, abnormal color detection, scene change detection;
Audio exception detection

Perimeter protection: line crossing/region entrance/ region exiting/ region intrusion detection (people/motor vehicle/non-motor vehicle classification)

Statistics: target counting by line/area (people/motor vehicle/non-motor vehicle classification)

Face detection: face detection, face capture

Other events: abandoned/missing object detection, heat map, loitering detection, illegal parking detection

General Function

Watermark, IP address filtering, video mask, heartbeat, illegal login, corridor pattern

PoE

Yes, IEEE802.3af

Water-proof Grade

No

Others

Power Input

DC12V/PoE

Power Output

Yes, max. 12V@0.5A

Power Consumption

< 5.5W

Environmental Protection

RoHS 2.0, REACH, WEEE, directive94/62/EC

Working Environment

-30℃~60℃, Humidity: less than 95% (non-condensing)

Storage Environment

-30℃~65℃, Humidity: less than 95% (non-condensing)

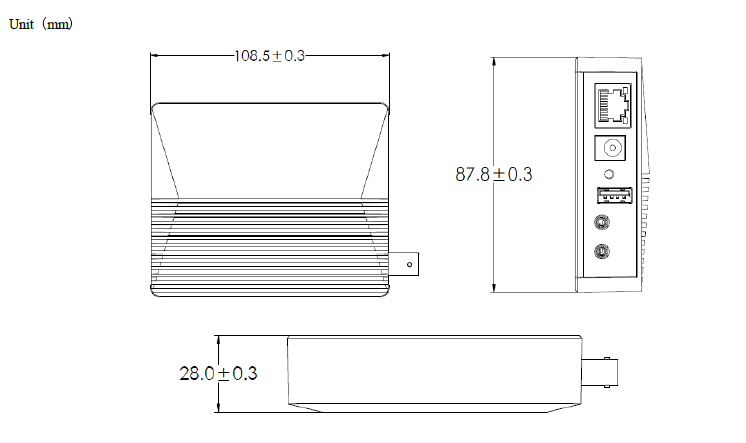

Dimensions(mm)

Server: 108.5×87.8×28.0

Weight (net)

Approx. 271.4 g

Installation

Wall mounting
