5MP 20fps/4MP real-time image, high resolution, true color
AHD / TVI / CVI / CVBS standard and lossless video output
Up to 1500 TVL resolution
CMOS progressive scan, perfectly capturing the moving object
Support OSD menu
High speed, long distance and real time transmission
Auto color to B / W at low illumination
Support ICR switch, true day / night
Support noise reduction function
20 ~ 30m LED view distance
IP67 ingress protection
Support COC
Support coaxial audio transmission (Temporarily only valid in TVI signal mode)
Pulsuz Çatdırılma 100 AZN yuxarı bütün sifarişlərə şamil olunur
Bütün məhsullara 100% zəmanət verilir
1gün ərzində məhsulları geri qaytarma edə bilərsiz
Covid-19 Məlumatı: Çatdırmağa davam edirik.
Model | TD-7554AE3S |
Camera | |
Image Sensor | 1 / 2.5" CMOS |
Resolution | 5MP |
Image Size | Max. 2944 × 1656 (16:9) |
Video Output | AHD / TVI / CVI / CVBS |
Audio | 1CH built-in MIC |
Image System | PAL / NTSC |
Electronic Shutter | Auto; 1/50s~1/100000s (PAL); 1/60s~1/100000(NTSC) |
LED Range | 20 ~30 m |
Frame Rate | TVI: 2944×1656@20fps, 2560×1440@25fps/30fps AHD: 2944×1656@20fps, 2560×1440@25fps/30fps |
CVI:2560×1440@25fps/30fps CVBS: PAL/NTSC | |
Min. Illumination | 0 lux (LED ON) |
Lens | 2.8 mm |
Lens Mount | M12 |
S / N Ratio | ≥52dB ( AGC OFF ) |
Ingress Protection | IP 67 |
Functions | |
Function Control | OSD ( COC Control ) |
ICR | No |
Digital WDR | Yes |
Digital NR | Yes, 2D DNR |
AGC | Yes |
Auto White Balance | Yes |
BLC | Yes |
HLC | Yes |
Sharpness | Yes |
Smart LED | Yes |
Image Setting | Yes |
Defect Correction | Auto |
Language | Chinese and English |
Angle Adjustment | Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360° |
Others | |
Power Supply | DC12V ( ± 15% ) |
Power Consumption | LED OFF : < 1W; LED ON : < 4W |
Working Environment | - 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
Dimensions ( mm ) | Ф 94.6 x 82.8 |
Weight ( net ) | Approx. 0.39KG |
Azərbaycan
English

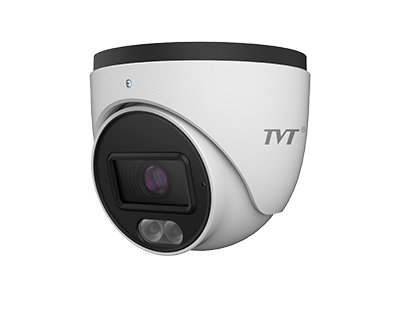

0 review(s) for "TD-7554AE3(AU/SW/WR2) 5MP Full-color HD Analog Turret Camera"
