Top-notch image quality
Both adopt 1/1.8″ large image format, P-IRIS and Sony 4th Starvis sensor, which could output top-notch picture quality at film cinema level.
Superior low-light color performance
Improve low-light performance 4x time than last gen contributing by F1.2 large aperture and Sony Stavis technology.
800m Laser IR distance
The Gen2 adopts a more powerful laser illuminator, which gives up 3x times IR beam energy, and thus could monitor above 800m in the pitch-black environment.
Lamps smears suppress
Suppress the strong light from headlamps and streetlamps, and distinguish human face details behind the car window glass from several hundred meters away in the night.
Multiple Deep-learning VCA
The built-in 1.5Tops AI engine could support multiple AI rules running at the same time: human/vehicle/no-motor classification, perimeter protection, face detection and capture, CPL, human/vehicles smart-tracking, etc.
Large on-board data storage
The on-board 4GB memory could be used to load, store a database of various objects IDs, such as ANP, facial ID and barcode. This could fasten the searching, comparing process in 1 second comparing to download from back-end (NVRs).
ONVIF protocol, API
This PTZ family conforms to the ONVIF, ensuring interoperability between surveillance video products regardless of manufacturers.
Strong protection for harsh weather
The gen has full-metal housing, IP67 and IK10 strong protection which support long-time working harsh weather such as: windstorm, sea salty corrosion, desert and high-land with strong sun radiation. The built-in heater supports cold-boot under zero 40 degrees, and the water-wiper supports working in tropical rainy area.
Rich accessories
Various mounting brackets including junction box,
hi-power PoE Midspan or power adaptor support flexible in-field wiring and mounting.
Pulsuz Çatdırılma 100 AZN yuxarı bütün sifarişlərə şamil olunur
Bütün məhsullara 100% zəmanət verilir
1gün ərzində məhsulları geri qaytarma edə bilərsiz
Covid-19 Məlumatı: Çatdırmağa davam edirik.
Camera Module | TD-8843IM2N(PE/WP/37M/VL8x), x=0,1 | TD-8883IM2N(PE/WP/37M/VL80) | |||
Image sensor | 1/1.8" progressive CMOS (SONY IMX664) | 1/1.8" progressive CMOS (SONY IMX678) | |||
Max resolution | 2560x1440 | 3840x2160 | |||
Mini. Illumination | Color：0.0005 Lux @ (F1.2,AGC ON)； | Color：0.001 Lux @ (F1.2,AGC ON)； | |||
Image setting | Saturation, Brightness, Contrast, Sharpness, AGC, AWB, etc. adjusted by client | ||||
| Shutter Speed | VL80:50Hz：1/25s-1/25,000s, 60Hz: 1/30s-1/30,000s. VL81:50Hz: 1/50s-1/50,000s,60Hz:1/60s-1/60,000s | ||||
White Balance | Auto/Manual/Indoor/Outdoor | ||||
Gain control | Auto/Manual | ||||
SNR | ≥52dB | ||||
Day & Night control | Auto Mode, Manual Mode, Scheduled-switch, Timer. | ||||
Focus control | Auto, Manual (Near/Far) | ||||
Iris control | Auto/Manual | ||||
| Noise Reduction | 2D/3D DNR, Auto/Manual | ||||
AE Enhancement | BLC, HLC, HDR | ||||
Digital Zoom | 16X | ||||
Image Stabilizer | DIS | ||||
| Optical Defog | Built-in optical defog filter | ||||
Privacy Mask | 4 areas per scene | ||||
| Picture overlay | Logo picture could be overlaid on video, 16x16,24x24,32x32,48x48,64x64,96x96,128x128pixels | ||||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color, text such as week, date, time | ||||
Lens | TD-8843IM2N(PE/WP/37M/VL8x),x=0,1 | TD-8883IM2N(PE/WP/37M/VL80) | |||
Focus length | f= 6 ~ 222mm lens,37x optical zoom±5% | ||||
Zoom Speed | Approx. 5.2s (optical zoom, wide-tele) ±5% | ||||
Field of View | Horizontal:59° to 1.98°. Vertical: 34.14° to 1. 12°.Diagonal: 67.08° to 2.27°. (wide-tele) ±5% | ||||
Image distance | wide: 1.0m ~ INF; tele: 1.5m ~ INF | ||||
Aperture type | F1.2~F4.6(wide-tele), P-IRIS, 6 slices Diaphragm, support auto/manual | ||||
IRCut Type | Removable IR Cut filter, absorbing type to anti flare and smear by Sun and headlamps of vehicles | ||||
DORI | Focus length | f=6mm | f=222mm | f=6mm | f=222mm |
Detect | 95.3m(312.7f.t.) | 2,960m(8126.6f.t.) | 138.2m(453.4f.t.) | 4,293m(14,084f.t.) | |
Observe | 124m (129.7 f.t.) | 1,429m (3250.7 f.t.) | 54.8m(217.5 f.t.) | 1,706m (5,589 f.t.) | |
Recognize | 19.06m(62.5 f.t.) | 592m(1625.3f.t.) | 27.6m(90.6 f.t.) | 858.6m(2,817f.t.) | |
Identify | 7.9m (31.3 f.t.) | 296m (812.7 f.t.) | 13.8m(31.3 f.t.) | 429.3m(1,408f.t.) | |
PTZ | |||||
Pan Range | 360°endless | ||||
Pan speed | Configurable, from 0.1~180°/s; Preset speed: 240°/s | ||||
Tilt Range | Mechanical: from -25° to 155°, auto flip at 90° | ||||
Tilt Speed | Configurable, from 0.1°~150°/s, Preset speed: 180°/s | ||||
Proportional Zoom | Yes | ||||
Preset | 360 | ||||
Cruise | 8 cruises, up to 16 presets for each cruise | ||||
Trace | 4 traces, record time over 3 minutes for each trace | ||||
Power off memory | Support | ||||
Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
3D Positioning | Support | ||||
PTZ Position Display | Support | ||||
Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot | ||||
Preset Freezing | N/A | ||||
Supplement Light | |||||
Light distance | 800m (2,625 f.t.) | ||||
Illuminator type | Zoomed IR Laser illuminator,850nm, IEC Class 4 eye safety, diagonal 70°~2.1° continuous variable. | ||||
Smart IR | Yes | ||||
Video | TD-8843IM2N(PE/WP/37M/VL8x), x=0,1 | TD-8883IM2N(PE/WP/37M/VL80) | |||
Mainstream | 2560x1440,1920×1080,1280×960,1280×720. (VL80: 25/30fps, VL81: 25/30/50/60fps) | 3840x2160,2560×1440,1920x1080, 1280×960,1280×720. | |||
Sub stream | 50Hz/25fps:704 × 576, 640 × 480, 352 × 288. 60Hz/30fps:704 × 480, 640 × 480, 352 × 240 | ||||
| Third Stream | 50Hz/25fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288. 60Hz/30fps :1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240 | ||||
Video compression | Mainstream: Smart H.265+/H.265/H.264+/H.264 Sub stream: Smart H.265+/H.265/H.264/MJPEG Third stream: Smart H.265+/H.265/H.264/MJPEG | ||||
H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | ||||
H.265 Standard | H.265/HEVC codec MP, level 5.0 | ||||
Video Bit Rate | 32 Kbps to 16Mbps | ||||
Audio | |||||
| Audio compression | G.711 A/U | ||||
| Audio Bit Rate | 64K bps | ||||
Network | |||||
Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, RTMP | ||||
User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering | ||||
API | ONVIF G/S/T/Q, support TVT SDK and third-party management platform | ||||
Client | TVT N9000 1.4.9&TVT NVMS 2.0 and later, the third-party client, free iOS and Android App | ||||
Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
Events | |||||
Basic event | Motion detection, video tampering alarm, alarm input, alarm output, exception ((Network disconnected, IP address conflict, SD full, SD error) | ||||
Smart event | Line crossing detection, region entrance detection, object removal detection, intrusion detection, region exiting detection, audio exception detection | ||||
Smart tracking | Manual/Auto-tracking of human/no-motor vehicle/motorized vehicle(ver5.1.1) | ||||
Alarm Linkage | Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card, Send Email, etc. | ||||
Deep-learning Function | |||||
Face capture | Detecting multiple faces in the same scene. Support detecting, capturing, grading, and output the best. | ||||
Fac comparison | (Default off) Yes | ||||
Perimeter protection | Line crossing, Intrusion, Region entrance, Region exiting. Support alarm triggering by specified type. | ||||
Road-traffic and vehicle detection | |||||
Road traffic | Support vehicle detection and tracking(ver5.1.1) | ||||
System Integration | |||||
Alarm Interface | 7CH alarm input (Dry contact); 2CH alarm output | ||||
Audio Interface | 1CH audio input, 2 to 2.4v[p-p] 1KΩ ±10%; 1CH audio output (line out), impedance: 600Ω | ||||
Network Interface | 1 RJ45 10M/100M Adaptive Ethernet | ||||
SD Card Slot | One MicroSD slot and chamber, up to 256G | ||||
Built-in Speaker | N/A | ||||
RS485 | Half-duplex, Pelco-P/D | ||||
| BNC | N/A | ||||
Reset button | Yes | ||||
Electric Fan &Heater | Built-in electric fan for heat sink and glass Frost/Fog removal. Built-in electric heater for cold start. | ||||
Water removal | Electric wipe for water-drops, dust, mud, ice, frost. Time-schedule/manual. | ||||
Demist | Active electric heating and air loop | ||||
General | |||||
Languages | Czech; English, German; Hungarian; Italian; Japanese; Korean; Portuguese, Polish; Russian, Romanian, Spanish; Spanish (Mexico); Simplified Chinese; Turkish; Traditional Chinese. Etc. | ||||
| Power consumption | avg:36W, max 63.6Watt (PTZ working + IR ON + Heater on) | ||||
| Power adaptor | DC36V3000mA, CE/FC/UL, 0-40℃ AC24V5000mA, CE/FC/UL,-40℃,+70℃ 90W PoE++ Midspan, FCC/UL/GB,-10,+50℃ | ||||
| Work condition | -40°C~70℃(-48℉ ~ 158℉) IR off; -40℃~50℃, IR on; Cold start>=- 30℃(0.5~1.5 hour waiting); 90%RH | ||||
Storage condition | -20℃~70℃; ≤ 80% RH | ||||
Material | Aluminum Alloy (ADC12) | ||||

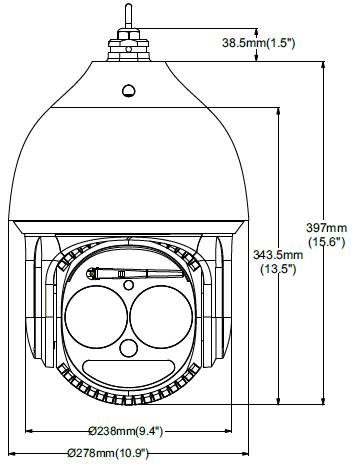

Dim. &Weight | ￠278mm x H 435.5mm( ￠10.9’x 17.1’), Net weight approx. 8.8 Kg (19.4 lb.) | ||||
Approval | |||||
EMC | FCC SDoC (47 CFR Part 15, Subpart B). CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014). KC (KN 32:2015, KN 35: 2015) | ||||
Certification | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014). CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); | ||||
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
Protection | IP67(IEC 60529-2013), IK10 (IEC 62262:2002),6000V Lightning Protection, Surge Protection and Voltage Transient Protection | ||||
