H.265S/ H.265+/H.265/H.264S/H.264 +/H.264 coding
Max. resolution: 2688 × 1520
ICR auto switch, true day / night vision
3D DNR, WDR, HLC, BLC and ROI coding
Support electronic image stabilization
Built-in micro SD card slot; up to 512G
AC24V/DC12V/PoE power supply
Support three streams
Support P2P function
Support SMD
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Multiple smart events can be enabled at the same time
Dual system backup
Pulsuz Çatdırılma 100 AZN yuxarı bütün sifarişlərə şamil olunur
Bütün məhsullara 100% zəmanət verilir
1gün ərzində məhsulları geri qaytarma edə bilərsiz
Covid-19 Məlumatı: Çatdırmağa davam edirik.

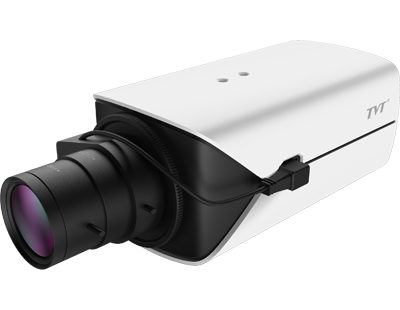

| del | TD-9342E4 |
| Camera | |
| Image Sensor | 1 / 2.9 "CMOS |
| Max. Resolution | 2688 × 1520 |
| Electronic Shutter | 1 / 3s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | Color: 0.003lux @F1.6, AGC ON; B&W: 0.002 lux @F1.6, AGC ON |
| S/N Ratio | ≥50dB |
| Lens Mount | CS |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| EIS | Yes |
| Image | |
| Video Compression | Main stream: H.265S/ H.265+/ H.265/ H.264S / H.264+ / H.264 Sub stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP (2688×1520),2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 |
| Main Stream | 4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Sub Stream | 1080P/720P/D1/VGA/640 ×360/CIF/480×240 ( 60Hz:1~30fps; 50Hz:1~25fps) |
| Third Stream | 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | 32 Kbps ~ 8 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | 8 ROI, each ROI to be configured separately |
| Interfaces | |
| Network | RJ 45 (10/100 Base-T) |
| Video Output | CVBS output (BNC × 1) |
| Audio | 1CH audio input; 1CH audio output; 1 CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 512GB |
| Reset | Yes |
| Alarm | 2CH alarm input; 2CH alarm output |
| RS485 | Yes |
| Intelligent Analytics | |
| Smart Event | Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, people gathering detection, heat map |
| Statistics | Target counting by line/area |
| Exception Detection | Scene change, video blur and abnormal color detection, audio exception |
| Face Detection | Face detection and face capture |
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature |
| Functions | |
| Remote Monitoring | Web Client/TVT NVR/NVMS/mobile APP |
| Web Browser | Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS |
| API&SDK | Yes |
| Interface Protocol | ONVIF Profile S/G/M/T |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SMD, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm |
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming |
| Security | Firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API service |
| PoE | Yes , IEEE802.3af |
| Illumination Distance | No |
| Weather-proof Grade | No |
| Others | |
| Power Supply | DC12V / AC24V / PoE |
| Power Consumption | < 6W |
| Storage Conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | 160.8 × 79 × 64 |
| Weight ( net ) | Approx. 0.5KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection | Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
