1:1 (3000×3000) @30fps
H.265+ / H.265/ H.264+ / H.264 MJPEG coding
ICR auto switch, true day & night
10~20m IR view distance
Support 3D DNR, digital WDR, BLC, HLC, Smart IR, Defog, etc.
Support ROI
Built-in micro SD card slot, up to 256GB
IP 67 ingress protection
Intelligent Analytics
Support P2P function
Support mobile surveillance by smart phones with iOS and Android OS
Pulsuz Çatdırılma 100 AZN yuxarı bütün sifarişlərə şamil olunur
Bütün məhsullara 100% zəmanət verilir
1gün ərzində məhsulları geri qaytarma edə bilərsiz
Covid-19 Məlumatı: Çatdırmağa davam edirik.

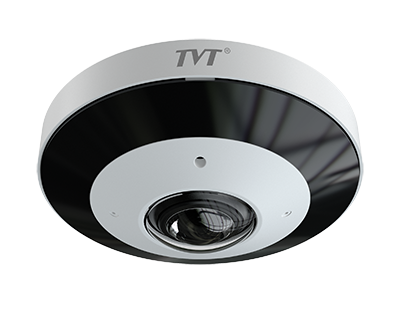

| Model | TD-95A8E3B |
| Camera | |
| Image Sensor | 1/1.7" Progressive Scan CMOS |
| Max. Resolution | 4000×3000 |
| Electronic Shutter | 1/3s ~ 1/100000s |
| Min. Illumination | 0.01 lux@F2.0, AGC ON; 0 lux with IR |
| IRIS | Fixed IRIS |
| Lens | 1.65mm @F2.0, horizontal field of view : 180° (wall mounting)，360° (ceiling mounting)，360° (desktop) |
| WDR | Digital WDR |
| S/N Ratio | ≥ 50dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D NR |
| Image | |
| Video Compression | Main stream: H.265+ / H.265/ H.264+ / H.264 Sub stream: H.265+ / H.265/ H.264+ / H.264 MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Main Stream | Mode1: Fisheye Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz: 1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz: 1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360(50Hz: 1~25fps; 60Hz: 1~30fps) Mode2: Panoramic Panoramic view (main stream): 4000×3000/3840×2160/3200×1800/2560×1440 (50Hz:1~20fps; 60Hz:1~20fps) Panoramic view (sub stream): 1920×1080/ 960×540/640×480 (50Hz:1~20fps; 60Hz:1~20fps) Panoramic view (third stream): 1280×720/640×360 (50Hz:1~20fps; 60Hz:1~20fps) Mode 3: Fisheye+Panoramic+3 PTZ Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~15fps; 60Hz:1~15fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~15fps; 60Hz:1~15fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~15fps; 60Hz:1~15fps) Panoramic view (main stream): 4000×3000/3840×2160/3200×1800/2560×1440 (50Hz:1~15fps; 60Hz: 1~15fps) Panoramic view (sub stream): 1920×1080/ 960×540/640×480 (50Hz:1~15fps; 60Hz: 1~15fps) Panoramic view (third stream): 1280×720/640×360(50Hz:1~15fps; 60Hz: 1~15fps) 3PTZ view: (1280×720/960×540/640×360) * 3 (50Hz:1~15fps; 60Hz: 1~15fps) Mode 4：Fisheye+ 4 PTZ Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~25fps; 60Hz:1~30fps) 4PTZ view : (1280×720/960×540/640×360) * 4 (50Hz:1~15fps; 60Hz: 1~15fps) Mode5：Fisheye+ 4 PTZ Fusion Fisheye view (main stream): 3000×3000/2160×2160/1080×1080 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (sub stream): 1440×1440/720×720/480×480 (50Hz: 1~25fps; 60Hz:1~30fps) Fisheye view (third stream): 960×960/ 640×640/360×360 (50Hz: 1~25fps; 60Hz:1~30fps) 4PTZ fusion view (main stream): 2560×1440 (50Hz:1~20fps; 60Hz: 1~20fps) 4PTZ fusion view (sub stream): 640×360 (50Hz:1~20fps; 60Hz: 1~20fps) 4PTZ fusion view (third stream): 640×360 (50Hz:1~20fps; 60Hz: 1~20fps) |
| Bit Rate | 64Kbps ~ 16Mbps |
| Bit Rate Type | VBR/CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | 1 CH RJ45 10 M/100 M self-adaptive Ethernet port |
| Video Output | CVBS (BNC × 1) |
| Audio | 2CH Built-in MIC, 1 CH audio input, 1CH audio output |
| RS-485 | Yes, half-duplex |
| Storage | Built-in micro SD card slot, up to 256GB |
| Reset | Yes |
| Alarm | 1CH alarm input, 1CH alarm output |
| Functions | |
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 6 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPS, HTTP, QoS, P2P, HTTP POST |
| Interface Protocol | ONVIF Profile S/G/M/T |
| Intelligent Analytics | Mode 1/3/4/5 (ceiling mounting): (Human) region intrusion/region entrance/region exiting/line crossing/target counting by line, heat map Mode 2/3 (Wall mounting or desktop): Region intrusion/region entrance/region exiting/line crossing/target counting by line (human/motor vehicle/non-motor vehicle classification) |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm, audio exception |
| General function | Watermark, video mask, heartbeat, corridor pattern, fisheye dewarping, system backup, disarming, cloud upgrade, ANR |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API services |
| PoE | Yes, IEEE802.3af |
| IR Distance | 10-20m |
| Ingress Protection | IP67 |
| General | |
| Power Supply | DC12V/PoE |
| Power Consumption | <10.5W |
| Working Environment | -30℃ to 60 ℃ (-22°F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Environment | -30℃ to 65 ℃ (-22°F to 149 °F). Humidity 95% or less (non-condensing) |
| Dimensions(mm) | φ130.6×46.3 |
| Weight (net) | Approx. 516.2g |
| Installation | Wall mounting, ceiling mounting, desktop |
| Certificate | CE, FCC, UKCA |
| Environment Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
