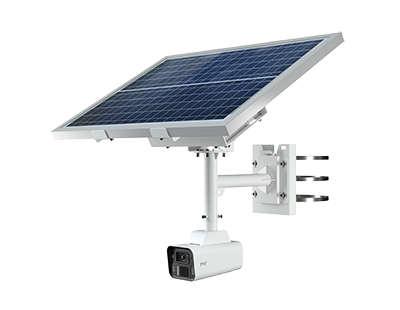

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

0.000625 lux@F1.0, AGC ON; 0 lux with LED ON

Shutter Speed

Auto

WDR

120dB

S/N Ratio

≥ 50dB

BLC

Yes

HLC

Yes

Digital NR

3D NR

Angle Adjustment

Pan: 0°~360°; Tilt:-60°~10°;

Lens

Lens Type

Fixed focal lens, 2.8mm and 3.6 mm optional

Aperture

F1.0

FOV

2.8 mm @F1.0, H.FoV: 113°; V.FoV:60°; D.FoV:133°
3.6 mm @F1.0, H.FoV: 95°; V.FoV:50°; D.FoV:114°

Lens Mount

M16

DORI

DORI

2.8mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m
3.6mm, D: 62 m, O: 25 m, R: 12 m, I: 6 m

Illuminator　

Supplement Light Type

White Light

Supplement Light Range

Full power mode: up to 20 m; Low power mode: up to 10 m

Smart LED

Yes

Video & Audio　

Video Compression

Main stream: H.265+ / H.265/ H.264+ / H.264
Sub/Third stream: H.265+ / H.265/ H.264+ / H.264 MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

4MP (2560×1440 ), 3MP (2304×1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 640 × 480,  CIF, 480 ×240

Main Stream

60Hz:4MP/3MP/1080P/720P(1~15fps); 50Hz:4MP/3MP/1080P/720P(1~12fps)

Sub Stream

60Hz:720P/D1/CIF (1~15fps); 50Hz:720P/D1/CIF (1~12fps)

Third Stream

60Hz:720P/640 × 480 (1 fps); 50Hz:720P/640 × 480 (1 fps)

Bit Rate

16Kbps ~ 8Mbps

Bit Rate Type

VBR/CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc.
adjustable through client software or web browser

ROI

Each ROI to be configured separately

Mobile Communication

SIM Card Type

Micro SIM

Frequency

LTE-TDD: Band 38/39/40/41;
LTE-FDD: Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28;
WCDMA: Band 1/5/8;  GSM: Band 2/3/5/8

Standard

LTE-TDD, LTE-FDD, WCDMA, GSM, 4G Cat4

PIR　

PIR Angle

Horizontal: 82°, vertical:50°

PIR Range

Up to 15 m

Interfaces　

Network

1 CH RJ45 10 M/100 M self-adaptive Ethernet port

Audio

1 CH built-in MIC, 1 CH built-in Speaker

Warning Light

1 blue LED light, 1 red LED light

RS-485

Yes, half-duplex

Storage

Built-in 64G eMMC storage (including system software);
Built-in micro SD card slot, up to 256GB

Reset

Yes

Functions

Remote Monitoring

Web Browser/TVT NVMS2.0/NVR/mobile APP

Web Browser

IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 3 users;
Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, SNMP, PPPoE, DDNS, 802.1x, SMTP, FTP, UPnP, HTTPs, HTTP, QoS, P2P, HTTP POST

Interface Protocol

ONVIF

Intelligent  Analytics

Video exception detection, region intrusion detection (human/vehicle classification), line crossing detection
(human/vehicle classification), and abandoned / missing object detection, PIR

Smart Alarm

Motion detection, SD card error, SD card full

Linkage

Upload to memory card/eMMC/FTP, notify surveillance center, audible warning, trigger recording, trigger capture, send emails

General function

Watermark, video mask, heartbeat, corridor pattern

Security

Video encryption, firmware encryption, HTTPs encryption,  configuration encryption, illegal login lock,
IP address filtering, 802.1x authentication, basic and digest authentication for HTTP

General

Power

Power Consumption: < 5W
Lower Power Mode:< 3.5 W (4 G working)
Power Supply: 12 VDC ± 25% * for debugging only
60 W ±2 W  Solar panels

Startup and Operating Conditions

-20℃ to 50 ℃ (-4 °F to 122 °F); Humidity 95% or less (non-condensing)

Gross Weight

Approx. 16.9KG (without LFP battery); Approx. 20.65 KG (with LFP battery)

Battery

Batter Type

LFP battery (lithium iron phosphate battery)

Capacity

23Ah

Battery Voltage

12.8V

Operating Temperature

Charging: -20 ℃ to 45 ℃ (-4 °F to 113 °F) ; Discharging: -20 ℃ to 60 ℃ (-4 °F to 140 °F)

Storage Environment

-10℃ to 35 ℃ (14 °F to 95 °F); Humidity 75% or less (non-condensing)

Battery Life

More than 2000 cycles

Protection

Protection

Camera:  IP67
Wind Resistance 12 level

Certificate

CE, FCC, Complies with Directive EU RoHS,  WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
Li-Battery: UN38.3, CE, FCC
4G Communication: SRRC/CCC, GCF, CE/UKCA, PTCRB, FCC, IC, Anatel, IFETEL, KC, NCC, JATE/TELEC, RCM, FAC, NBTC, IMDA, ICASA,etc.
